Best USB Oscilloscopers in 2024

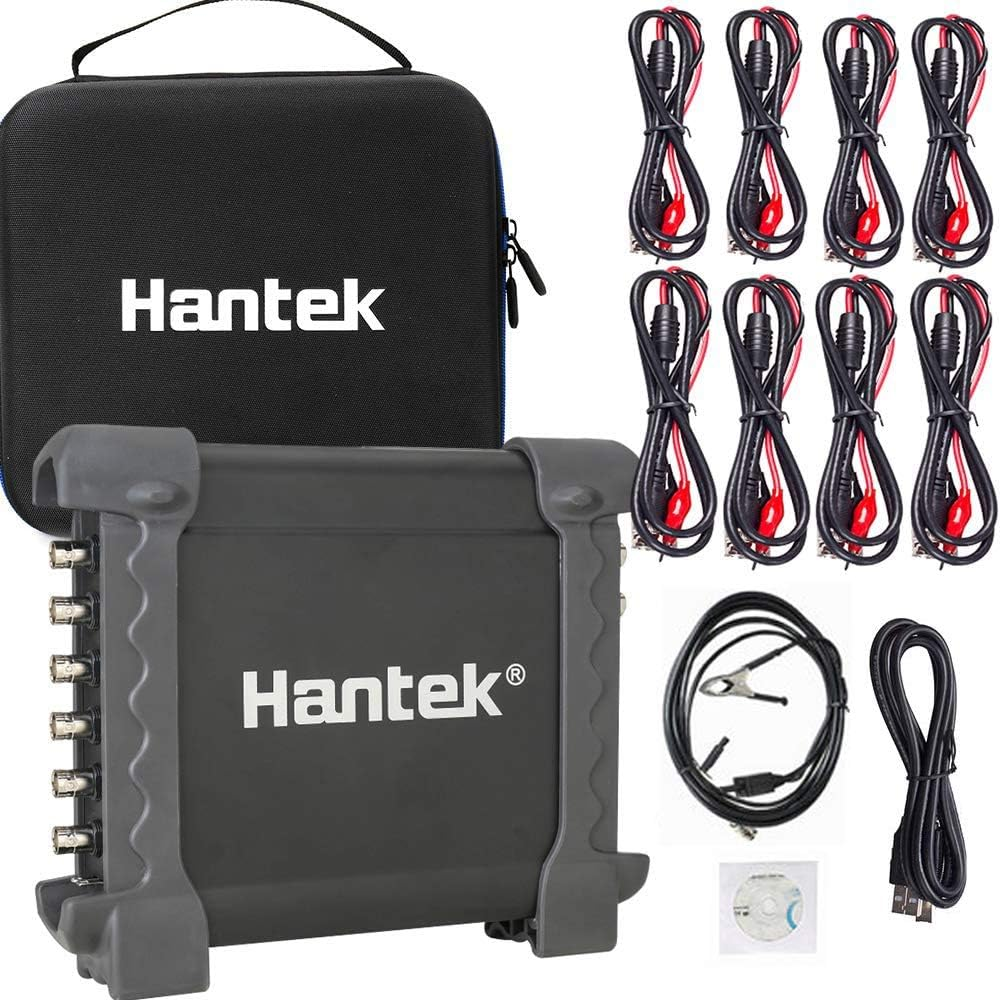

Hantek 1008C+8CH Oscilloscope For Computer Automotive Diagnosis
The Hantek 1008C+ stands out as a versatile and powerful automotive diagnostic tool. With 8 channels and a bandwidth of 2.4MSa/s, it excels in high-performance testing capabilities necessary for diagnosing, troubleshooting and repairing complex electrical systems in modern vehicles. The inclusion of the software generator allows users to simulate signals for testing purposes, enhancing its usefulness.
Where can it be used
Ideal for various automotive diagnostic applications, including:
- Engine diagnostics
- Ignition System Testing
- Fuel System Analysis
- Diagnosis of ABS and airbag
- Electronic Control Unit (ECM) testing.
Select
- Manufacturer: Handic
- Power Source: Electric Cord
- Dimensions: 0.89 × 0.76 × 0.17 inches
- Operating System: Windows 7
- Screen Size: 27.6 cm
- Bandwidth: 2.4MSa/s
- Channels: 8
- Software Generator: Yes
Pros
- Versatile and powerful automotive diagnostics
- High performance testing capabilities
- Generator software for signal simulation
- Easy-to-use software
- Supports compatibility with Windows 10
Cons
- May require some technical expertise
- Limited OS compatibility (supports Windows 7 only)
Check the price on Amazon.
Why you should buy If you are a professional auto technician or mechanic, the Hantek 1008C+ is an excellent investment. The high-performance testing capabilities and easy-to-use software and software generator make it a reliable tool for diagnosing and fixing electrical problems in vehicles.
Pecoscope 2204A
PicoScope 2204A stands out as a high-performance USB oscilloscope at an affordable price. With two channels and a 10MHz bandwidth, it is ideal for electronics testing and R&D. The compact design adds to its appeal, making it suitable for small workspaces.
Where can it be used
Multiple applications, including:
- Electronics testing and troubleshooting
- Research & Development
- Education & Training
- Automation and industrial control
- Automotive and Aerospace Tests
Select
- 2 Channels
- 10 MHz bandwidth
- Sampling rate 1 GS/s
- Advanced digital triggers
- Arbitrary waveform generator
Pros
- High performance at an affordable price
- Compact design
- Easy-to-use software
- Suitable for a wide range of applications
Cons
- Limited bandwidth compared to higher models
- Programs can be slow at times
Check the price on Amazon.
Why you should buy PicoScope 2204A is an excellent choice for those looking for a high-performance USB oscilloscope at a reasonable price. Its versatility, compact design, and user-friendly software make it a valuable tool for various applications.
Hantec 6022BE Digital Oscilloscope
The Hantek 6022BE digital oscilloscope is a portable, compact tool that provides two channels and 20 MHz bandwidth. This USB oscilloscope is ideal for those who need a reliable way to measure and monitor electronic signals. The high-performance real-time sampling rate of 250 ms/s makes it suitable for both technical applications and production line maintenance.
Where can it be used
Ideal for various settings, including:
- Educational institutions
- Labs
- Technical applications
- Production Line Maintenance
- Research & Development
allocation
- Bandwidth: 20MHz-80MHz
- Sampling rate: 250 ms/s
- Channels: 2
- Interface: USBXITM
- Real-time sampling: Yes
- Number of measurement functions: 23
- Pass/Fail Check: Yes
Pros
- Portable and compact design
- Real-time sampling rate 250 ms/s
- High bandwidth 20MHz-80MHz
- Suitable for technical applications and maintenance of production line
- 23 Measurement Functions
- Pass/Fail Inspection
Cons
- Some users have reported compatibility issues with certain operating systems
Check the price on Amazon.
Why you should buy If you're looking for a portable compact oscilloscope for on-the-go use, the Hantek 6022BE is an excellent choice. The high-performance sampling rate, bandwidth and additional features make it suitable for various technical applications.
Tablet Oscilloscope
The tablet oscilloscope is a digital touch storage oscilloscope assembly that provides accurate readings and efficient analysis of electronic signals. With two channels, a 100MHz bandwidth and a 7-inch color display, this oscilloscope is versatile and can be used in education, automotive diagnostics, industrial testing and research.
Where can it be used
Ideal for various fields, including:
- education
- Automotive Diagnostics
- Industrial Testing
- search
Select
- 2-channel bandwidth 100MHz
- 7 inch TFT LCD color display
- Capacitive touch panel
- Built-in high-performance 6000mAh lithium battery
- Up to 12 parameter measurements
- USB interface for connecting to PC
- Memory Compression Technology
- Powerful waveform photo manager
- FFT display function
Pros
- High accuracy and clear readings
- Versatile and suitable for various applications
- Effective one-button automatic device
- Built-in storage for screenshots and waveform data
- USB interface for sharing with a computer
- Smart anti-burn feature
- Memory compression technology and wave image management
- FFT display function for spectroscopy
Cons
- The guide can be more detailed
Check the price on Amazon.
Why you should buy a tablet oscilloscope which is an excellent product that offers accurate readings and efficient analysis of electronic signals. Its versatility, one-button operation and additional features make it suitable for students, mechanics, engineers and scientists.
Hantek HT6022BE20Mhz Digital Oscilloscope
The Hantek HT6022BE20Mhz digital oscilloscope is a compact and affordable solution for engineers, technicians and hobbyists who need basic oscilloscope functions. With a maximum bandwidth of 20MHz and two channels, it allows users to easily measure and analyze electronic signals, although it lacks a built-in display.
Where can it be used
Excellent for testing and troubleshooting electronics in:
- Electronic circuit design
- Automotive Diagnostics
- Industrial Control Systems
- Power Electronics
- Telecommunications
Select
- 20 MHz bandwidth
- Channels
- USB 2.0 interface
- Real-time sampling rate 48 ms/s
- Memory depth 1 meter
- The program supports Windows 10, Windows 8 and Windows 7/NT/XP/Vista
Pros
- Affordable price point
- USB interface for easy connection
- 2 channels for versatile signal analysis
- Lightweight and portable design
- Compatible with a wide range of Windows operating systems
Cons
- No built-in display
- Requires a computer to work
Check the price on Amazon.
Why you should buy If you're looking for a basic budget-friendly oscilloscope, the Hantek HT6022BE20Mhz is an excellent choice. Its compact size, USB interface, and compatibility with different Windows operating systems make it suitable for a wide range of applications.
Velleman PCSU1000 USB Oscilloscope for Dual Channel Computer
Velleman stands out PCSU1000 as an excellent choice for those looking for a reliable and affordable dual-channel USB oscilloscope. Thanks to its high resolution, precision and user-friendly software interface, it offers functions suitable for laboratories, classrooms and personal projects.
Where can it be used
Ideal for use in:
- Labs
- Classrooms
- Personal Projects
Select
- Time base: 20ns to 100ms per section
- Trigger source: CH1 CH2 EXT or freehold
- Trigger edge: rise or fall
- Trigger level: full screen adjustable
- Interpolation Step: Linear or Seamless
- Signs of voltage and frequency
- Input range: 5mV to 2V/section
Pros
- Two-channel operation
- High accuracy and accuracy
- User-friendly software interface
- Compact and portable design
- Offers a lot of functionality at an affordable price
Cons
- Input voltage range is limited
Check the price on Amazon.
Why should you buy Velleman PCSU1000? Velleman PCSU1000 is an excellent choice for those looking for a reliable and affordable oscilloscope. Its dual-channel operation, high resolution, and user-friendly software interface make it ideal for various projects, despite its limited frequency response and input voltage range.
Pico Picoscope 2406B USB Oscilloscope Technology
THE PICO TECHNOLOGY PICOSCOPE 2406B IS A VERSATILE AND HIGHLY EFFECTIVE OSCILLOSCOPE FOR ELECTRONIC AND ELECTRICAL ENGINEERING APPLICATIONS. With four analog channels, a 50 MHz bandwidth, and a sampling rate of 1 GSPS, it meets high-speed applications and provides flexibility in signal analysis.
Where can it be used
Designed for use in various electronic and electrical engineering applications, including:
- Troubleshoot circuits
- Signal Analysis
- Electronic Device Testing
- Research & Development
- Educational settings
Select
- Analog channels: 4
- Bandwidth: 50MHz
- Sampling rate: 1 GSBS
- Buffer Memory: 32 Mbps
- Resolution: 8-bit
- Input range: ±50mV to ±100V
- Input coupling: AC/DC/GND
- Types of triggers: edge, pulse width, video, pattern
Pros
- Versatile and highly effective
- Four analog channels
- 50MHz bandwidth for high-speed applications
- 1 GSPS sampling rate for accurate signal capture
- 32Mbps buffer memory for long capture times
- Multiple trigger types for flexibility in signal analysis
- User-friendly software interface
- Portable design for ease of use
Cons
- Price on the top side
- Programs can be a bit complicated for beginners
Check the price on Amazon.
WHY YOU SHOULD BUY If you are looking for a versatile and highly effective oscilloscope for electronic and electrical engineering applications, the PICO TECHNOLOGY PICOSCOPE 2406B is an excellent choice. Its features, including multiple analog channels, high bandwidth, and flexible driver types, make it suitable for a wide range of projects.
Digylant Analog Discovery 2
Digilent Analog Discovery 2 is a powerful, versatile USB oscilloscope, logic analyzer, and variable power supply designed for engineers, students, and amateurs. Thanks to its compact and portable design, it offers a range of functions, including a dual-channel USB digital oscilloscope, random function generator, stereo subwoofer, digital logic analyzer, pattern generator, and variable power supply.
Where can it be used
Ideal for use in:
- Electronics Labs
- R&D Facilities
- Engineering halls and teaching laboratories
- Amateur Home Workshops
Select
- Dual-channel USB digital oscilloscope with 100ms sampling rate and 30MHz bandwidth
- Dual-channel arbitrary function generator with 25 ms waveform generation
- Stereo subwoofer for driving headphones or external speakers
- 16-channel digital logic analyzer with sampling rate up to 100 ms/s
- 16-channel pattern generator with up to 100 ms/s waveform generation
- Variable power supply up to 5V and 2.5A
Pros
- Compact and portable design
- Offers a range of functions and features
- Compatible with software tools, including WaveForms and MATLAB
- Provides high-quality measurements and analyses
- Suitable for a wide range of applications, including electronics design, testing and troubleshooting
Cons
- May not be suitable for advanced or specialized applications that require more specialized equipment or features
Check the price on Amazon.
Why You Should Buy Digilent Analog Discovery 2 is a powerful and versatile tool that offers a range of features for engineers, students, and amateurs. Its compact design and compatibility with various software tools and functions make it suitable for a wide range of applications in electronics design, testing, and troubleshooting.
Buy Guide for Your USB Oscilloscope
Before delving into the wonders of a USB oscilloscope, make sure you are armed with the knowledge to choose the perfect device that meets your needs. Consider the following factors:
- Know your needs Understand the intended use – whether you're an amateur, student, or professional – to narrow down options.
- The importance of bandwidth Choose bandwidth based on the type of signals you'll be dealing with—higher bandwidth for high-frequency signals, and lower bandwidth for simpler tasks.
- Sample rate sensitivity Higher sample rates pick up fast-moving signals in more detail, while slower rates may miss important information.
- Channels and connectivity Select the number of channels you need, and make sure it matches your setup (USB 2.0 or 3.0).
