The Art of Reducing Voltage in Laptops - Boosting Performance with Low Heat
Understanding Undervolting
Laptops often become uncomfortably warm after a few hours of use. One proven way to lower the temperature your laptop generates is to control the amount of energy it consumes, known as undervolting. But what exactly is undervolting, and how can it be applied? Let's dive into these questions in this article.
What is Undervolting?
The CPU in your laptop requires a stable and stable electric current to function. Naturally, part of this electrical energy is lost in the form of heat emitted by the processor. One of the characteristics of the electric current to the processor is the voltage (volts), which represents the pressure that pushes electrons (and therefore the electric current) towards the processor.
When we reduce voltage, also known as undervolting, we reduce that pressure. Thus, this reduces the amount of electrical energy reaching the processor, reducing wasted energy in the form of heat. Lowering the temperature can be an effective way to lower the temperature generated by your laptop.
In a previous discussion, we explored the Ultimate Performance mode to improve processor performance at the expense of increased power consumption. Similarly, manipulating the processor's mains can change its performance.

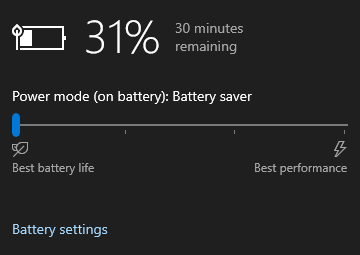

Adjusting power modes, as shown, allows you to balance power consumption with processor performance. In contrast, the Undervolting system reduces your laptop's power consumption, thus producing heat. More importantly, this doesn't slow down your laptop; instead, it can increase speed and overall performance. Modern processors automatically increase their speed when working at low temperatures. Conversely, they reduce the speed (and performance) of high temperature management.
Lowering voltage not only improves your laptop's performance, but also improves battery life. However, random reduction may result in unstable processor performance, resulting in minor revaluation. We will discuss this in detail shortly.
Is undervolting safe?
Voltage drops are generally safe and unlikely to cause permanent harm to the processor. However, over-undervoltage can lead to unstable laptop performance, errors, or even sudden shutdowns, such as when a laptop battery runs out. This usually doesn't harm the processor or the laptop itself, as it returns to normal operation unless you configure Undervolting to activate automatically on startup.
Overvoltage is different from overvoltage, and it's a risky process that is best left to professionals. Providing your laptop with more electrical power than it needs can cause permanent damage to the processor, motherboard, or other laptop components. This damage can occur within months or even seconds of overvoltage, rendering your laptop useless.
Although voltage reduction is generally safe, there is a slight possibility of an error, such as accidentally raising the voltage (overvoltage) or lowering it excessively, causing your laptop to suddenly shut down and potentially lose unsaved work. Undervolting remains your responsibility.
How to Undervolt with ThrottleStop
There are several ways to adjust the voltage to the processor. For laptops with Intel processors, using ThrottleStop is a straightforward option. For AMD processors, a Ryzen or Universal x86 Tuning Utility controller can be used.
Video Guide for ThrottleStop Video Guide for x86
ThrottleStop does not require installation; simply unzip it to a new folder. Open the program and click OK when the warning message appears. For Intel processors, after opening the software, press FIVR (Fully Integratedvoltage Regulator), the processor voltage controller.
To make sure that voltage adjustments continue after closing the program, click OK - save voltages immediately. Choose CPU Core under FIVR control options and activate the adjustable voltage opening.
Keep the adjustment option active, changing only the displacement voltage. This means that the voltage will vary according to the needs of the processor, but you will reduce it by the specified offset voltage.
Voltage reduction requires some experiments to find the optimal voltage level that is low enough for the processor requirements. Start by reducing the voltage by 100 millivolts (mV), set the value next to Offsetvoltage to -100, and then click Apply.
If your laptop doesn't turn off immediately, your current undervolting is suitable. However, additional checks are recommended. If the laptop is turned off, restart ThrottleStop, and choose a lower value (such as -50 mV) for the displacement voltage.
Conclusion: Improved performance and temperature
Undervolting is a safe and effective way to improve your laptop's performance and reduce its temperature. By carefully adjusting the voltage, you can achieve a balance that prevents overheating without compromising speed. Experiment with Undervolting settings to find the perfect configuration for your laptop, ensuring performance boosts while maintaining stability.
Q&A Section
Q1: Is Undervolting suitable for all laptops?
A1: Undervolting is generally applied to laptops with Intel processors. However, it may not be available for all processor models, especially those in the Ryzen series.
Q2: Can Undervolting damage my laptop?
A2: The reduction is safe when done with caution. Over-understraining may lead to temporary instability, but it won't cause permanent damage. However, overvoltageing, or saving overvoltage, can lead to irreparable damage.
Q3: What are the potential benefits of Undervolting?
A3: Voltage drops can lower your laptop's temperature, extend battery life, and improve overall performance without compromising speed.
