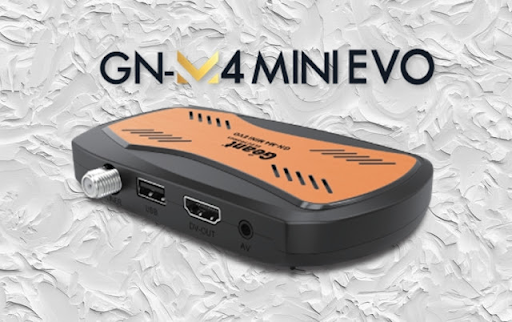

SOFTWARE GÉANT GN-M4 MINI EVO
Mini Evo Géant GN-M4 Hello Everyone, How Are You? I Hope You're Doing Well. In this post, I'll Show You A Géant Satellite Company Géant GN-M4 Mini Evo Software Update Model. This article contains all of the information on this model. The link to the software is at the bottom of the page.
Download Géant Gn-M4 Mini Evo Latest Software Update
GÉANT GN M4 MINI EVO V116
UPDATE: 08/05/2022
Satellite Receiver Géant Gn-M4 Mini Evo Digital Satellite Géant Gn-M4 Mini Evo Software 2022 Receiver Download the latest software for the Géant Gn-M4 Mini Evo Receiver. Firmware for the Géant Gn-M4 Mini Evo. Specifications for the Géant Gn-M4 Mini Evo. Download the Géant Gn-M4 Mini Evo Dump Flash File And Loader.
Géant Gn-M4 Mini Evo Spécifications.
Processor And Memory Chipset S5H
Cpu 32Bit Ck610M Cpu With Mmu
Flash 8Mbyte Spi Nor Flash
Sdram Built-In 128Mb 16-Bit Ddr3 Sdram
Dvb-S2 Demod Dvb-S [En300 421], Dvb-S2 [En302 307]
Qpsk/8Psk/16Apsk/32Apsk
Dvb-S/Dvb-S2 Demodulator Compliant And Channel Decoder Compliant With En300421/En302307-2
Diseqctm Receive/Transmit For The Control Of Lnb, Dish, And Oth
Interfaces Tuner S2 Tuner In
Earphone Av Connector Left /Right Audio Channel, Compositive Video
Hdmi Hd Output Connector Hdmi Transmitter
Usb 2.0 1*Usb2.0 Host
1 Dc Power Input Connector 12V/1A
General Features Operation System Ecos
Power Consumption
Working Power Consumption ：Less Than 12W
Network Support Usb 3G
Support Usb Wifi
Storage
Usb2.0
High-Speed And Full-Speed Devices Supported, Pvr Is
Supported
Supported All Kinds Of Storage 、Recording And Playing
Graphics And Display 2D/3D Upscale/Downscale Function
Support Gaussian Blur
Simultaneous Hd & Sd Outputs
Multi-Layer Input And Alpha Blending
Video /Audio Decoder H265 Video (Hevc/H.265), Bp/Mp/Hp Up To L4.0
H.264 Video (Iso/Iec 14496-10), Bp/Mp/Hp Up To L4.1
Mpeg-4 Video (Iso/Iec 14496-2), Sp/Asp Up To L5
Dolby Ac3/Dd+(Optional)
Single-Channel, Dual-Channel, Stereo, And Joint Stereo Modes Supported
Dra Decoding
Jpeg Decoder Engine
Dvb Function Audio/Video Format Supported
Support Favorite,Sort,Move / Delete,Edit
Support Network Search/Auto Search/Tp Search
EPG / Subtitle / Teletext Supported
Usb/Factory Recovery/Upgrade Supported
Multi-Language Dvb Subtitle Output
Dvb Subtitle
Other Support Pvr/Timeshift
Support RSS
Support Multi-Formats: Pal, Nts
Tuner & Channel Input Impedance 75Ω
Input Frequency Dvb-S/S2 950~2150Mhz
Symbol Rate Qpsk 1~45Mbauds; 8Psk 2~30Mbauds
Demodulation Qpsk.8Psk,16Apsk,32Apsk
Device Parameter Power Dissipation 10W Max
Input Voltage: Dc 12V
Temperature 0 ～ 40℃
Size Stick
Wifi（Onboard） Network Standard Ieee 802.11B/802.11G /802.11N
Throughput Rate 80Mbps
Frequency Band 2.4Ghz
