Replace the volume button on the Samsung Galaxy Note Edge
If you can't adjust the volume on your device, there may be a faulty volume switch. Use this guide to replace the volume button on your device.
Step 1 Volume button
Step 2

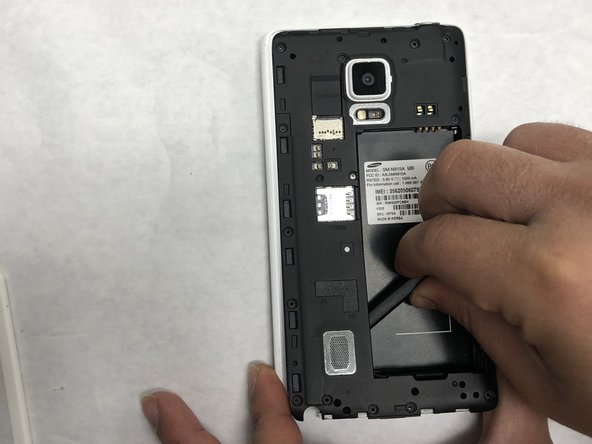

Use the Spudger to remove the battery using the notch at the bottom of the battery.
Note: While creating this guide, we did not have access to the battery.
Step 3

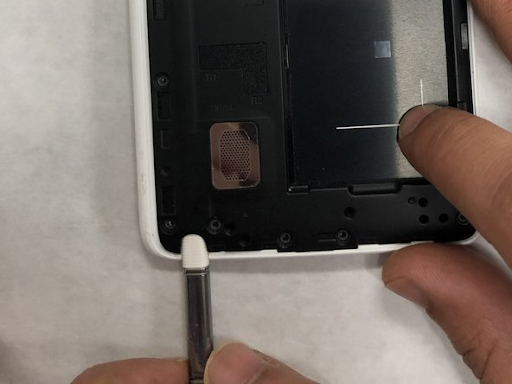

He took the pen out of its sheath.
Step 4

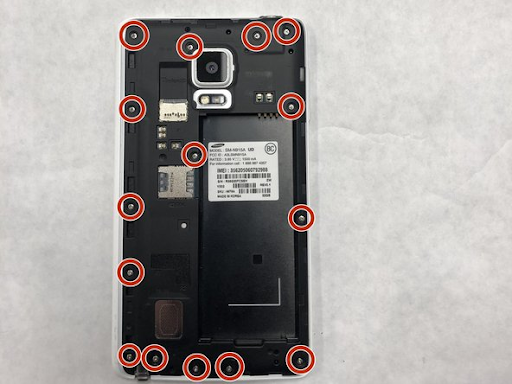

Use a Philips #000 screwdriver to remove the fifteen 4mm screws.
Step Five
Use the Spudger to remove the black case and expose the motherboard.
Step 6

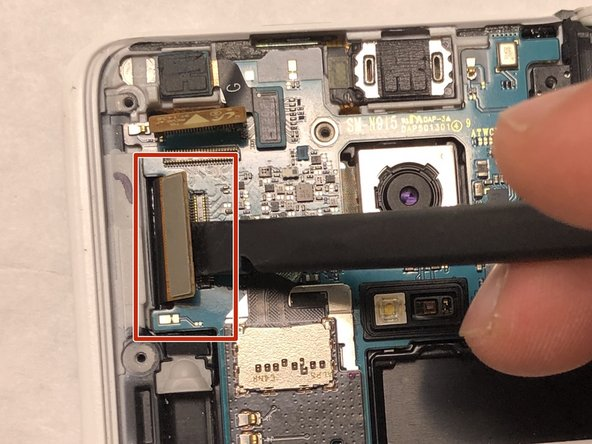

Use Spudger to disconnect the following connections:
Connection 1
Connection 2
Connection 3
Step 7

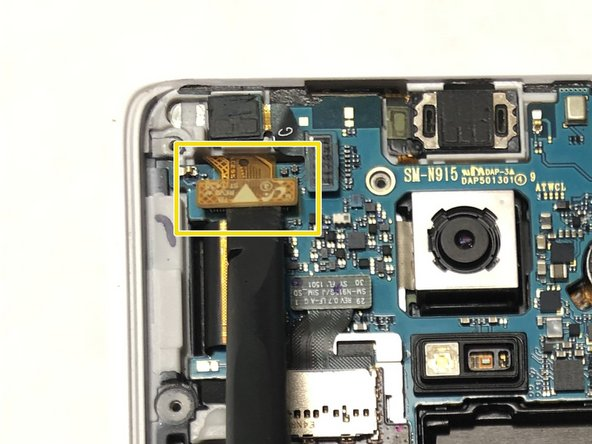

Remove the connection from the front camera.
Step 8
Do not attempt to remove the motherboard completely until the last step.
Use the Spudger to gently lift the motherboard.
Remove the motherboard and daughter board connection.
Remove the motherboard.
Step 9

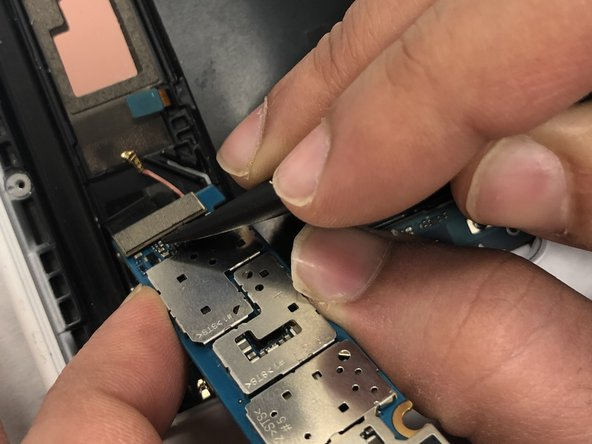

Remove the volume button panel.
Remove the volume button connection.
Remove the volume control button completely.
Conclusion
To reassemble your device, follow these instructions in reverse order.
