Replacement Earpiece/Power Button for Samsung Galaxy Note Edge
The power button and the speaker of the phone are part of one component and therefore need to be replaced together. The power button is responsible for turning the phone on/off, as well as resetting the phone. The speaker is responsible for the sound during phone calls.
Step 1 Battery
Step 2
Step 3 Motherboard
Step 4
Step Five

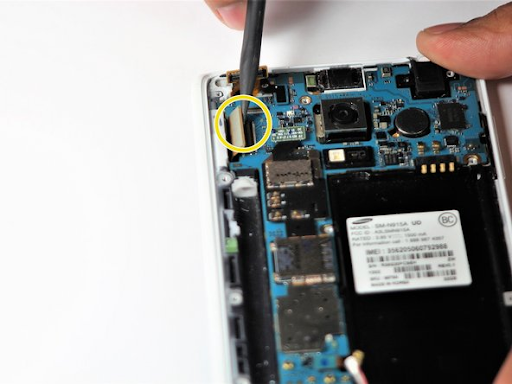

Using the pointed end of a Spudger, strip the following threads that connect these parts to the logic board in the upper left corner:
Front camera
AMOLED display
Capacitive AMOLED screen
Step 7
At the top end, gently insert the pointed end of the spudger under the motherboard.
Gently lift the motherboard up. Disconnect the cable that connects the daughter board. It is attached to the underside of the motherboard.
Remove the motherboard from the device.
Step 8: Ear speaker and power button

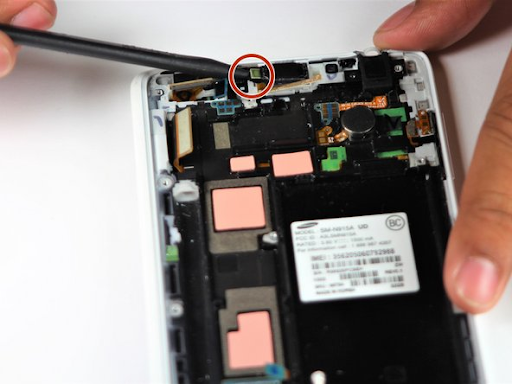

Gently insert the pointed end of the spudger under the gold strip that connects the speaker and the power button.
Lift the tape to separate it from the frame.
Step 9
Insert the pointed end of the spudger under the rim on the left side of the phone speaker.
Gently lift the speaker and power button from its housing.
Carefully remove the power button from the device.
To reassemble, you must insert the power button back first.
To reassemble your device, follow these instructions in reverse order.
