Download Firmware Software VS.T53U12.2
Download the free VS.T53U12.2 software for LCD and LED televisions. A maximum resolution of 1920 x 1200 is supported by the VS.T53U12.2 Screen. The board is a one-stop shop for all things China. It has a headphone jack, USB port, PC port, VGA port, HDMI port, and component input and is designed for LCD and LED TVs. In several nations, Universal Boards are used. Are you looking for a website where you can get free LCD/LED TV software and firmware? You've arrived to the right location.

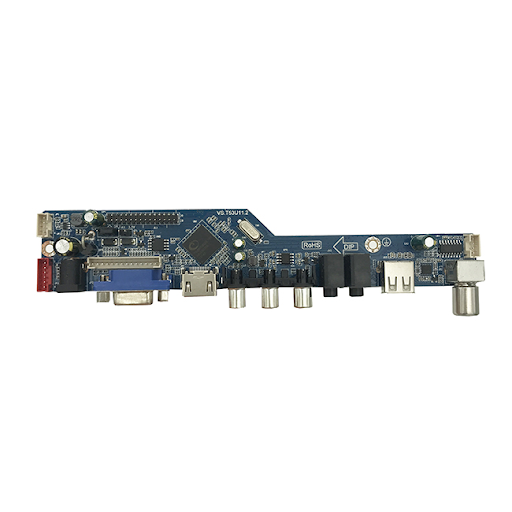

Basic Information PCB Board VS.T53U12.2
Model No: VS.T53U12.2
Main Chip: TSUMV53UUL-Z1
Resolution Supported UP To 1920 X 1200 FHD to Panel LCD/LED TV
Screen Supported: Up 17” to 46” Panel LED&LCD
Panel Voltage DC: +3.3 V/+5 V+ 12 V/ Jumping setting
Main AC Power Supply: 220 V
HDMI Input: 1 Port
USB Input: 1 Ports
VGA Input: 1 Port
PC Input & Audio / Video: Yes
Current: Without Panel (500 Ma)
TV System: SECAM/NTSC PAL/
IR Control: Yes (Remote Control)
Key Button Functions: VOL+/VOL- Source/Power/CH-/CH+/MENU
Input & Output Ports: AV, Earphone Out, HDMI, USB, RF TV interface, and VGA
Headphone: Yes
Audio OUTPUT: 2 x 5 Watt (8 ohms)
RF TV: 1 Port
Component Input: Yes
Multi-Language: Yes
USB Port Upgrade: YES
Service Code VS.T53U12.2
The service model allows you to change the board’s internal parameters or unlock the factory code, Resolution Code. etc.
Through the remote, enter the numeric code Input/Source 2580,2508,2508
How to download and install Firmware VS.T53U12.2
To download the required firmware click on Download Button given below table.
When the download is completed, the file will be stored in your PC download folder.
Copy the firmware file into an empty USB. Make sure the USB has no other data.
Plugin the USB in the LED/ LCD Main Board USB port.
Switch ON the LED TV power and Wait until LCD/LED Flashing Stop or LED IR Flashing Speedily Working.
When the LED IR stops flashing, remove the USB from the TV LCD/LED board.
Note: Do this process fast otherwise it will not work.
| Sr.No | Description | Download Link |
|---|---|---|
| 1 | VS.T53U12.2_1024X768_SONY | Download |
| 2 | VS.T53U12.2_1280X1024_SONY | Download |
| 3 | VS.T53U12.2_1280X768_logo_SONY | Download |
| 4 | VS.T53U12.2_1280X768_SONY | Download |
| 5 | VS.T53U12.2_1366X768_SONY | Download |
| 6 | VS.T53U12.2_1366X768_S_SONY | Download |
| 7 | VS.T53U12.2_1400X1050_SONY | Download |
| 8 | VS.T53U12.2_1440X900_SONY | Download |
| 9 | VS.T53U12.2_1600X1200_SONY | Download |
| 10 | VS.T53U12.2_1600X900_SONY | Download |
| 11 | VS.T53U12.2_1680X1050_SONY | Download |
| 12 | VS.T53U12.2_1920X1080_SONY | Download |
| 13 | VS.T53U12.2_1920X1200_SONY | Download |
| 14 | VS.T53U12.2_640X480_SONY | Download |
| 15 | VS.T53U12.2_800X600_SONY | Download |
| 16 | VS.T53U12.2_China_SONY | Download |
| 17 | VS.T53U12.2_SONY | Download |
| 18 | VST56_1366X768 | Download |
