Download Firmware Software MSOV590-ZC01-01
Software-Haier-Orient Software MSOV590-ZC01-01
MSOV590-ZC01-01-Firmware Obtain the USB bin file Orient LE43G6530 Orient LE43G6530 Orient LE43G6530 Orient Orient's Full HD LED TV Full HD 1920x1080P resolution with excellent detail and clarity. This Orient LED TV comes with clever dimming as well as outstanding back-lighting technology. The image quality is more consistent and smooth. The perfect brightness is provided via a clever dimming feature. Your room will have a trendy appeal because to the Ultra-slim design. Energy Efficient Technology is included in the LE43G6530. A more energy-efficient model than the traditional ones from the east. It is more natural for users due to its dramatic contrast with clearly enhanced realism and language support. The model has an ambient light sensor built in that senses how much light is in the area and adjusts automatically. You may transfer content using HDMI and USB interfaces.

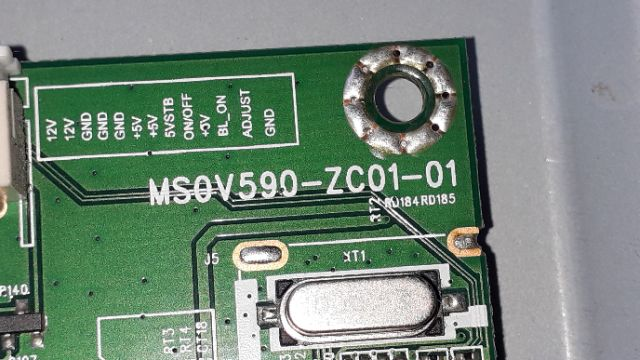

Basic Information PCB Board MSOV590-ZC01-01
Model No: MSOV590-ZC01-01
Resolution Supported UP To: 1920 X 1080 to Panel LCD/LED TV
Screen Supported: Up 32” to 46” Panel LCD/LED
Panel Voltage DC: + 12 V
Main AC Power Supply: 220 V
HDMI Input: 2 Ports
USB Input: 1 Ports
VGA Input: 1 Port
PC Input & Audio / Video: Yes
IR Control: Yes (Remote Control)
Key Button Functions: VOL+/VOL- Source/Power/CH-/CH+/MENU
Input & Output Ports: AV, Earphone Out, HDMI, USB, RF TV interface, and VGA
Headphone: Yes
RF TV: 1 Port
Component Input: Yes
Multi-Language: Yes
USB Port Upgrade: YES
Service Code MSOV590-ZC01-01
The service model allows you to change the board’s internal parameters or unlock the factory code, Resolution Code, etc.
Through the remote, enter the numeric code Input/Source 2580.
How to download and install Firmware MSOV590-ZC01-01
To download the required firmware click on Download Button given below table.
When the download is completed, the file will be stored in your PC download folder.
Copy the firmware file into an empty USB. Make sure the USB has no other data.
Plugin the USB in the LED/ LCD Main Board USB port.
Switch ON the LED TV power and Wait until LCD/LED Flashing Stop or LED IR Flashing Speedily Working.
When the LED IR stops flashing, remove the USB from the TV LCD/LED board.
Note: Do this process fast otherwise it will not work.
1 MSOV590-ZC01-01-Orient-LE43G6530-R842 Download
2 MSOV590-ZC01-01-Orient-Tuner- 842 Download
