Download Firmware Software HDV56U-AS V2.1
HDV56U-AS V2.1 Software is available for free download. Download the 1366X768 resolution. How do I change the boot logo settings? Take a look at the page. You can get ITV.V59.031 for free by going to this link. China is represented on the board of directors. Suitable for LCD and LED televisions.

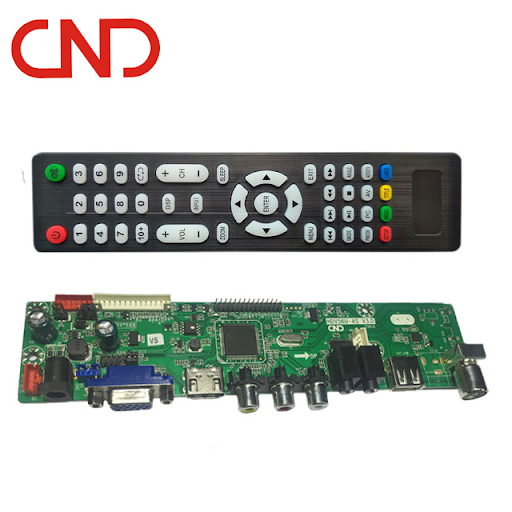

Basic Information PCB Board: HDV56U-AS V2.1
Model No: HDV56U-AS V2.1
Main Chip: TSUMVV56RUUL-Z1
Resolution Supported UP To: 1920 X 1080 to Panel LCD/LED TV
Screen Supported: 17” up to 32”
Service Code: Input + 2580
Panel Voltage DC: +3.3 V / +5 V / +12 V Dc (Jumper)
Main AC Power Supply: 220 V
HDMI Input: 1 Port
USB Input: 1 Port
VGA Input: 1 Port
PC Input & Audio / Video: Yes
Headphone: Yes
RF TV: 1 Port
Multi Language : Yes
USB Port Upgrade: Yes
These are the key features:
Compatible with various analog TV systems, including PAL, NTSC, and SECAM
Support for 3D boards
Anti-static and EMC treatment that is reliable.
Detecting the input video format automatically.
HDMI, DVI, VGA, and USB inputs.
Superior-quality stereo speakers built-in.
Support for multiple OSD languages.
A TFT-LCD screen with a maximum resolution of 1920X1080.
The expanded port board supports 1*2 AV inputs, 1AV output, and 1YPBPR input.
IMPORTANT: Before powering up, please adjust the jumper cat to the proper position,Otherwise, the TV board will be burned.
Service Code:
The service model allows you to change the board’s internal parameters or unlock the factory code, Resolution Code, etc
Screen Specification Adjustment: Factory setting–Use the right key to choose–MAP.
Through the remote, enter the numeric code.Menu+8896
Boot Logo Setting:
1: Put your logo into the U disk.
2: connect your U disk with the mainboard.
3: Find your logo in Multi-media File.
4: Select your logo.
5: Press No.”6 ” on the remote control to change to fullscreen play, then press “ok” on.
the remote control, on the bottom of the option items, there is a ” catch”, choose it done.
Note: Resolution firmware does not need to be loaded. If the software is corrupted, load the backup dump and change the resolution with the jumper settings.
How to download and install Firmware.
To download the required firmware click on Download Button given below table.
When the download is completed, the file will be stored in your PC download folder.
Copy the firmware file into an empty USB. Make sure the USB has no other data.
Plugin the USB in the LED/ LCD Main Board USB port.
Switch ON the LED TV power and Wait until LCD/LED Flashing Stop or LED IR Flashing Speedily Working.
When the LED IR stops flashing, remove the USB from the TV LCD/LED board.
Note: Do this process fast otherwise it will not work.
1 HDV56U-AS V2.1 Download
2 HDV56U-AS V2.1-1366X768 Download
