 Download Firmware Software CV628H-B42

Free firmware update for the CV628H-B42. CV628H-B42 Firmware Download All Resolutions With USB & EMMC Programmer WiFi that is smart CV628H-B42 is a CV628H-B42 service code.

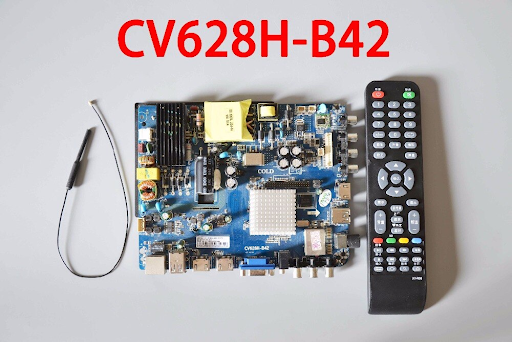

Basic Information PCB Board Cv628H-B42

Main Board Model: CV628H-B42

Backlight : 50 to 95V 80W 450mA

OS: Android 4.4, 5.1, 7.1

CPU Frequency: 1.2 GHz

GPU Frequency: 432 MHz (4 Core GPU)

Ram: 1Gb DDR

Rom: Gb eMMC

Resolution: up to 3840X2160 UHD

Power Consumption: 108 Watt

Firmware Type: USB Upgrade, EMMC Backup

Brand Universal Chinese 4K Smart Boar

Panel Size 32 to 65 Inches

Panel Voltages 220V

RAM 1 GB

ROM 4 GB / 8GB

WiFi Yes

Operating System Android 4.4


Service Code:

The service model allows you to change the board’s internal parameters or unlock the factory code, Resolution Code, etc. Screen Specification Adjustment: Factory setting–Use the right key.


Through the remote,enter the numeric code.Menu 1147

How to download and install Firmware.

Software and firmware updates for CV628H-B42 is easy. To install/update firmware successfully without any problems, you must follow some steps. You should not attempt to install or update the firmware if you are a new user. We will not be responsible if a problem arises due to your actions.


all the parts of your required resolution and extract them in one folder to create a BIN file.

Format a USB drive to fat32. Copy the CtvUpgrade.bin file to the USB, and insert it into the CV628H-B42 Smartboard.

Now, connect the main power switch to the device and press the button and hold for a few seconds, the led light will blink.

After the led light stops blinking, power on the LED TV again and remove the USB cable. You are now ready to use the LED TV.

Note: Important Note Updating Firmware:

My Team is not responsible for any type of loss or damage to the PCB board during the installation of firmware. You can download and run firmware your own responsibility.




CV628H-B42_1366X768 _Samsung.Part01Download
CV628H-B42_1366X768 _Samsung.Part02Download
CV628H-B42_1366X768 _Samsung.Part03Download
CV628H-B42_1366X768 _Samsung.Part04Download
CV628H-B42_1366X768 _Samsung.Part05Download
CV628H-B42_1366X768 _Samsung.Part06Download
2CV628H-B42_1920X1080.Part01Download
CV628H-B42_1920X1080.Part02Download
CV628H-B42_1920X1080.Part03Download
CV628H-B42_1920X1080.Part04Download
CV628H-B42_1920X1080.Part05Download
CV628H-B42_1920X1080.Part06Download
3CV628H-B42_1920x1080_Samsung.part01Download
CV628H-B42_1920x1080_Samsung.part02Download
CV628H-B42_1920x1080_Samsung.part03Download
CV628H-B42_1920x1080_Samsung.part04Download
CV628H-B42_1920x1080_Samsung.part05Download
CV628H-B42_1920x1080_Samsung.part06Download
CV628H-B42_1920x1080_Samsung.part07Download
